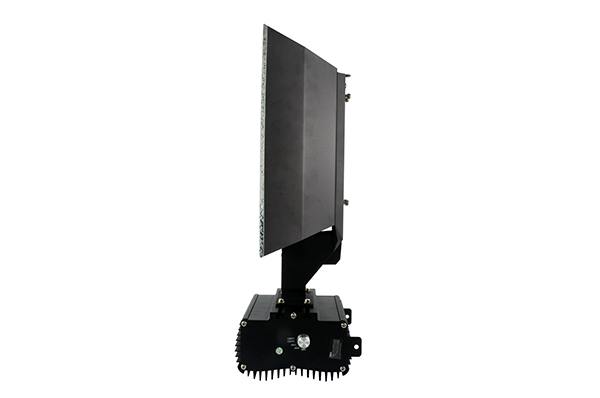

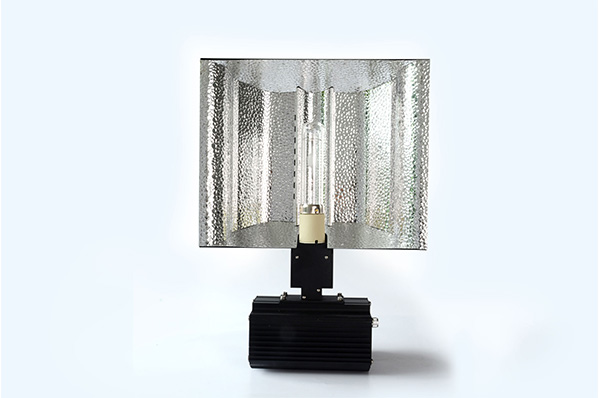

LAA315 Dimmable CMH Grow Light Fixture-Low Frequency
▪ Integrated Lighting
▪ Wide Input Voltage range 100-300vAC / 50-60Hz
▪ Active PFC 0.99 ( Max )
▪ High efficiency, Low THD
▪ Strike both Metal Halide and High Pressure Sodium bulbs
▪ Run properly ended 315W bulb at 190W 245W 315W 345W
▪ Intelligent Self Diagnostic System
▪ Soft start and Staggered ignition eliminates circuit inrush and protects lamp
▪ Multiple Protections OVP, UVP, OTP, SCP, OCP
▪ 2 Years Warranty
MODEL SPECIFICATIONS
| Model No. | Longood Code | Input Voltage | Output Voltage | Rated Output Power | Efficiency( 240Vin ) / Full Load | Power Factor ( Full Load ) | |||
| 120VAC | 240VAC | 277 VAC | 300VAC | ||||||
| LAA315-240L | RL010A | 100-265VAC | 80-130V | 315W | 94% Max | 0.99 | 0.98 | - | - |
| LAA315-277L | RL010A-1 | 277-300VAC | 80-130V | 315W | 94% Max | - | - | 0.99 | 0.98 |
ELECTRICAL SPECIFICATIONS
| Input Voltage Range | 100-300AC |
| Input Frequency | 47-63Hz |
| Power Factor | 0.99 ( Max ), >0.95 240VAC input, 40%~100% load |
| Input Current | 1.31A at 240VAC, 1.2A at 277VAC |
| Inrush Current | 60A at 220VAC, 25℃ cold start |
| Leakage Current | 0.5mA Max at 240VAC / 50 / 60Hz input |
| Maximum Output Power | 315W |
| Output Frequency | 120Hz |
| Bulb Failure Detection | YES |
| Start up time | 3-10 Second |
| Protections | Open Circuit Protection, Short Circuit Protection, Over Voltage Protection, Under Voltage Protection, Over Temperature Protection |
| THD | <10%, 277VAC, 50Hz input, 100% load<10%, 240VAC, 60Hz input, 100% load |
ENVIRONMENTAL SPECIFICATIONS
| Operating Temperature | 0℃~+35℃ |
| Operating Humidity | 20～95% RH |
| Storage Temperature | -45℃~+80℃ |
| Storage Humidity | 10~95% RH |
| Cooling Method | Natural Cooling |
| Isolation Voltage | input / Gnd 1600VAC 5mA 1Min |
| Insulation Resistance | Input / Gnd 50MΩ 500VDC 1Min |
| Reference Dimension(L×W×T) | 508.3 x 376.2 x 188.4mm |
| Weight | 0.35kg |
SAFETY & EMC COMPLIANCE
| UL / CUL | UL1598 / CSA C22.2 NO.250 |
| CE | EN61347-2-12 |
